| Place of Origin: | Sichuan, CHINA |
|---|---|
| Brand Name: | IOTROUTER |
| Certification: | CE FCC RoHs |
| Model Number: | EG8000Mini |
| Minimum Order Quantity: | 1PCS |
| Price: | USD95~270/PCS |
| Packaging Details: | 270*180*6mm CARTON PACKAGE |
| Delivery Time: | 1 WEEK |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 5000PCS/MONTH |
| Material: | Galvanized Steel Sheet | Interface: | RS485/RS232 |
|---|---|---|---|
| Protocol: | MQTT/HTTP/TCP/UDP/WEBSOCKET | CPU: | ARM Cortex-A72 4*1.5G |
| Storage: | 1G + 8G | Operating Temperature: | -20~80℃ |
| Storage Temperature: | -20~85℃ | Environment Humidity: | 10-90%RH (non-condensing) |
| Cooling Method: | Heat Sink / Dissipation Silicone | Rated Voltage: | DC12V, DC9~28V(Working Range) |
| Product Name: | Edge Raspberry Pi Gateway | Size: | 118*90*35mm |
| Weight: | ＜1kg | ||
| High Light: | 5G raspberry pi edge gateway,raspberry pi edge gateway,Raspberry Pi Gateway Smart Device |
||

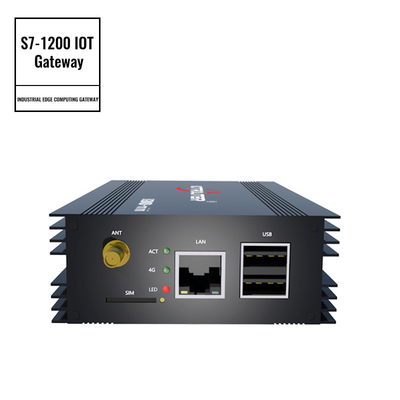

LTE Cellular 4G Router Edge Gateway For IoT Application Smart Device
Parameters of IOT Router
EG8000mini series products are edge computing gateways launched by IOTRouter Chengdu. With its rich hardware interfaces, drag-and-drop programming method, Zero Code design concept, convenient remote management and other characteristics, It can quickly, flexibly, accurately and efficiently respond to various IoT industry needs. Edge8000 abstracts complex hardware interfaces, different industrial network protocols, etc. into Nodesone by one. Users can use these Nodes flexibly to replace the traditional complex and inefficient coding process by dragging and connecting. Really let customers focus on business logic and quickly create their own gateway equipment. The mission of Edge8000 is to continuously develop new Nodes to serve industry customers to adapt to the fragmentation of IoT industry needs.
EG8000mini IoT gateway connects industrial devices and proactively collects the real time data, buffers it and then push it to cloud or database server. The field data can also be exchanged between I/O device and PLC cyclically by using the IoT gateway via standard Modbus. In addition, if the I/O device is smart enough, it can also push the sensor data to cloud by MQTT.
