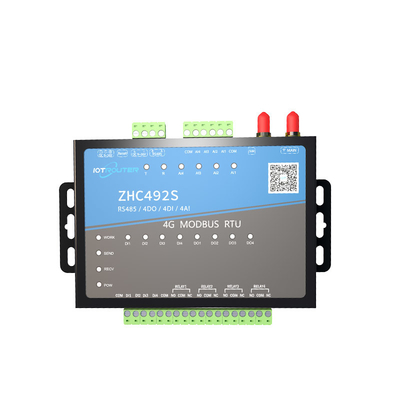

4G IOT Data Monitoring MQTT Modem For Greenhouse Agricultural Micro Green Growing System

Basic Information
Place of Origin: Sichuan, CHINA
Brand Name: IOTROUTER
Certification: CE FCC RoHs
Model Number: ZHC492S
Minimum Order Quantity: 1PCS
Price: USD69~79/PCS
Packaging Details: 270*180*55mm CARTON PACKAGE
Delivery Time: 1 WEEK
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50000PCS/MONTH
Material: Galvanized Steel Sheet Interface: RS485/4DI/4DO/4AI
Protocol: MODBUS TCP/RTU MQTT JSON Function: Transparent Transmission
Application: IOT Monitoring Working Voltage: 12V
Module Type: 4G LTE Customized: Support
Product Name: Data Monitoring MQTT Modem
High Light:

4G IOT Data Monitoring MQTT Modem

,

Greenhouse MQTT Modem

,

Microgreen Growing System MQTT Modem

4G IOT Data Monitoring MQTT Modem for Greenhouse Agricultural Micro Green Growing System





Parameters of MQTT Modem



Serial Port
DO
Number of ports
RS485*1
Number of interfaces
1 Relay output
Standard
RS485: A, B
Standard
NO*1, COM*1
Baud rate
600~921600bps
Mechanical durability
10^7
Data bit
8, 9
Electrical durability
10^5
Stop bit
0.5, 1, 1.5, 2
Capacity
5A 250VAC 30VDC
Check Bit
NONE EVEN ODD
DI
Power Supply
Number of interfaces
2 Relay input
Voltage
9~36V
Standard
DI*2, COM*1
Current
60mA(aver) @9V
30mA(aver) @36V
Detection range (wet node)
5~50V->High0~2V->Low
EMC
AI
ESD
IEC61000-4-2, Level 4
Number of Interfaces
1 Analog input
Surge
IEC61000-4-2, Level 3
Standard
AI*1, G*1
Group pulse
IEC61000-4-2, Level 3
Scope of test
4~20mA







ZHC492S support 4-channel dry (wet) node detection, 4-channel relay (COM, NO, NC) Output, 4 channel analog quantity (current 4~20mA) detection, 1 channel RS485 transparent network IO products, compatible with Modbus RTU/TCP protocol. With remote control as the core function, it is highly easy to use, users can easily and quickly integrate into their own systems to realize remote and local control based on LTE, RS485.







Client can send Modbus commands to ZHC492C through the network and serial port to read and write DO status.
DO of ZHC492S support active reporting, restarting the holding relay status, output holding time, timing flip.



ZHC492S can realize long-distance data transmission of one to one, one to many and many to many.

Customers do not need to develop the server, but configure the cloud networking function of the device.





4G IOT Data Monitoring MQTT Modem For Greenhouse Agricultural Micro Green Growing System 0

4G IOT Data Monitoring MQTT Modem For Greenhouse Agricultural Micro Green Growing System 1

4G IOT Data Monitoring MQTT Modem For Greenhouse Agricultural Micro Green Growing System 2

4G IOT Data Monitoring MQTT Modem For Greenhouse Agricultural Micro Green Growing System 3

4G IOT Data Monitoring MQTT Modem For Greenhouse Agricultural Micro Green Growing System 4

4G IOT Data Monitoring MQTT Modem For Greenhouse Agricultural Micro Green Growing System 5

4G IOT Data Monitoring MQTT Modem For Greenhouse Agricultural Micro Green Growing System 6



4G IOT Data Monitoring MQTT Modem For Greenhouse Agricultural Micro Green Growing System 7

4G IOT Data Monitoring MQTT Modem For Greenhouse Agricultural Micro Green Growing System 8





ZHC492S

RS485 Modbus

RS485 Automatic Acquisition

Virtual Serial Port

Connfiguration Software

Threshold Report

4 Channel Socket

8 Alarm Clocks

Customize the Follow Logic of Ports

JSON/Modbus RTU/TCP
