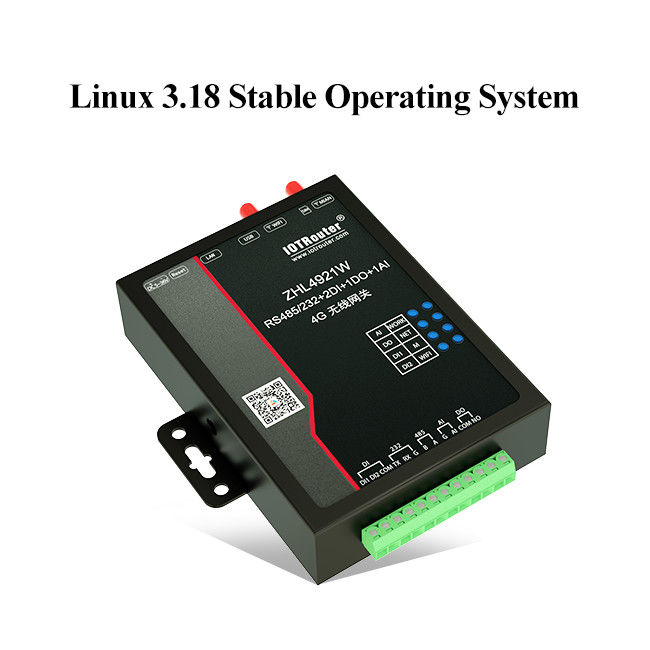

4G Iot Security Router Rs232 Rs485 Wifi Remote Control Module With Linux

Basic Information
Place of Origin: SICHUANG, CHINA
Brand Name: IOTROUTER
Certification: FCC ROHS CE
Model Number: ZHL4921W
Minimum Order Quantity: 1PCS
Price: USD85~89/PCS
Packaging Details: 270*180*55mm Carton Package
Delivery Time: 3 WEEKS
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50000PCS/MONTH
Chipset: QUECTEL-EC20 Ports: DI*2 DO*1 AI*1
Transmission Rate: 921600Kbps Product Name: 4G IOT Router
System: Linux Working Voltage: 12V
Module Type: 4G LTE Material: Galvanized Steel Sheet
Size: 160x96x28mm Main Function: Wireless Data Transmission
OEM: Support
High Light:

4G Iot Security Router

,

iot security router Rs232

,

IOT 4G router With Linux

4G IOT Router Rs232 Rs485 Wifi Remote Control Module With Linux Operating System





Product Introduction of IOT Router ZHL4921W



ZHL4921 provides RS232 interface and RS485 interface, users can choose one of them according to the situation, but not at the same time.
ZHL4921 provides a RJ45 network port. The device acts as a server, and it automatically monitors the fixed IP address 192.168.225.1 of the machine and the fixed port 50000. The upper computer is used as a client connection device for debugging configuration.
If the device connected to the network port needs routed Internet access, you only need to set the device connected to the network port to automatically obtain IP mode. After a while, you can obtain the IP address through the network port, and you can route to the Internet at this time. For example, webcams, computers and Internet.









Datasheet
Serial Port RS485*1/RS232*1(choose one)
Standard 3.81 Connection port
Baud Rate 2400~115200 bps
Data Bit 8, 9
Stop Bit 0, 1.5, 2
Parity Bit NONE EVEN ODD
Network Port LAN*1
Network Port Standard RJ45
Rate 0/100Mbps
Protection 2KV(Electromagnetic Isolation)
GNSS (Optional)
Coordinate System WSG84
PositionaI Accuracy 10 Meters





Features of IOT Router ZHL4921W



Support NTP function, realize automatic network time calibration
1 channel 100M industrial Ethernet interface
1 RS485/RS232 serial interface
Interface: AI*1/ DI*2/ DO*1
Support MODBUS RTU and MODBUS TCP protocol adaptation
Support setting the direction of active data reporting
Support TCP_Client, MQTT, HTTP_Client
Interface: AI*1/ DI*2/ DO*1
Support two working modes: master mode, slave mode, master mode supports cascading multiple Modbus devices
Internal self-inspection mechanism to ensure stable operation of equipment
Support cloud forwarding, cloud networking
Support network port, WIFI, remote, serial port configuration
Support domain name address resolution
Support setting APN
Support SIM card number query
Support custom heartbeat package
Support multiple registration packages (ID, CCID, custom) to ensure the legality and uniqueness of the device identity
Support WIFI hotspot/GPS positioning
Support 10*10KB network/serial data buffer
Support timing flip relay status
