| Place of Origin: | Sichuan, CHINA |
|---|---|
| Brand Name: | IOTROUTER |
| Certification: | CE FCC RoHs |
| Model Number: | ZHC0941/51 |
| Minimum Order Quantity: | 1PCS |
| Price: | USD38~42/PCS |
| Packaging Details: | 270*180*55mm CARTON PACKAGE |
| Delivery Time: | 1 WEEK |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50000PCS/MONTH |
| Material: | Galvanized Steel Sheet | Interface: | RS485/4AI/4AO/4DI/4DO |
|---|---|---|---|
| Protocol: | MODBUS TCP/RTU | Function: | Point To Point Connection |
| Product Name: | Multi Interface 868mhz Lora Modem | Application: | Oil Field Monitoring |
| Working Voltage: | 12V | Module Type: | 434MhzLORA |
| Customized: | Support | Color: | Black |
| OEM: | Support | ||
| High Light: | RS485 To Lora Modem,Wireless RS485 To Lora Modem,Rs485 Lora Converter |
||

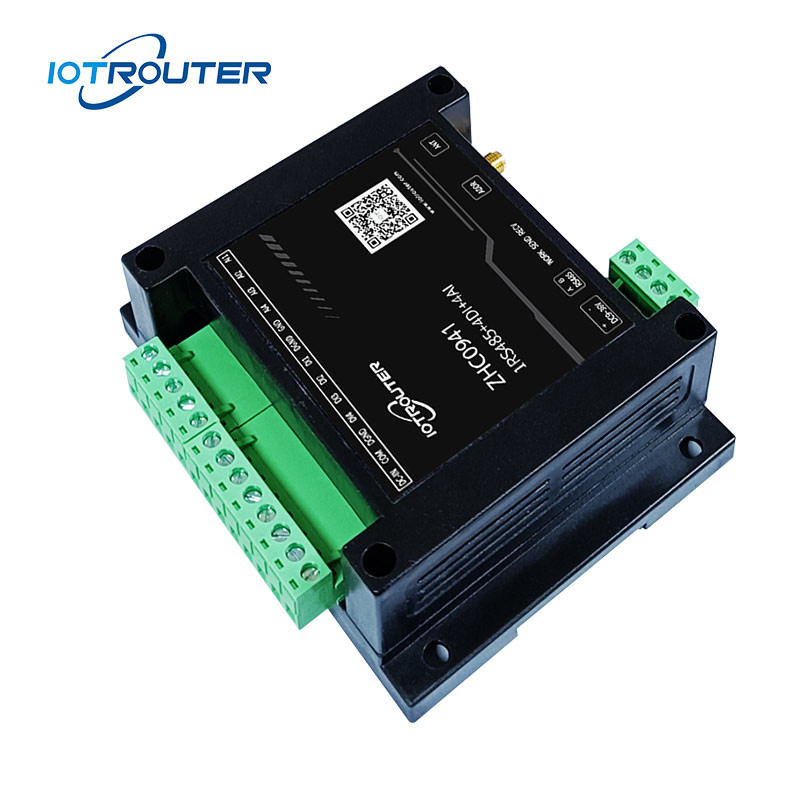

Wireless Lora Modem Netway Wireless Gateway Smart Agriculture IOT Irrigation
Parameters of Lora Modem
| ITEM | Describe | |
| LORA | Protocol | ZHC Protocol |
| Transmitted Power | Max transmitting power: 20dBm | |
| Antenna | Suction cup antenna (470 ~ 540MHz) | |
| DI*4 | Dry/Wet nodes | Isolated Power |
| Short circuit DGND and COM to switch to wet node mode | ||
| Short-circuit DC-IN, COM to switch to dry node mode | ||
| AI*4 | Analog input detection | Supports 4 to 20mA analog input detection |
| RS485*1 | Serial Port | Maximum baud rate 115,200 |
| Dial switch | 8-bit DIP switch | Factory reset, firmware upgrade |
| Reset: channel 5 6 7 8 to ON | ||
| Upgrade mode: After all channels are turned ON and restarted | ||
Introduction of Lora Modem
ZHC0941/0951 supports forwarding data packets of specified modules, which can extend the wireless communication distance limitedly.
One module can forward data packets of multiple modules at the same time, effectively expanding the wireless coverage area.
ZHC0941/0951 supports multi-level relay networking, which can extend communication distance and extend signal coverage to reach blind spots. Support automatic relay networking, which can shorten the engineering cycle.
