|Place of Origin:||Sichuan, CHINA|
|Certification:||CE FCC RoHs|
|Minimum Order Quantity:||1PCS|
|Packaging Details:||270*180*55mm CARTON PACKAGE|
|Delivery Time:||1 WEEK|
|Payment Terms:||L/C, T/T, Western Union|
|Material:||Galvanized Steel Sheet||Interface:||RS485/4DI/2DO|
|Protocol:||MODBUS TCP/RTU||Function:||Transparent Transmission|
|Product Name:||Iot Device Lora Modem||Application:||Wireless Data Gathering|
|Working Voltage:||12V||Module Type:||434MHZ LORA|
Iot Lora Modem,
20dBm Lora Modem,
ZHC0561 Industrial Gateway Wireless

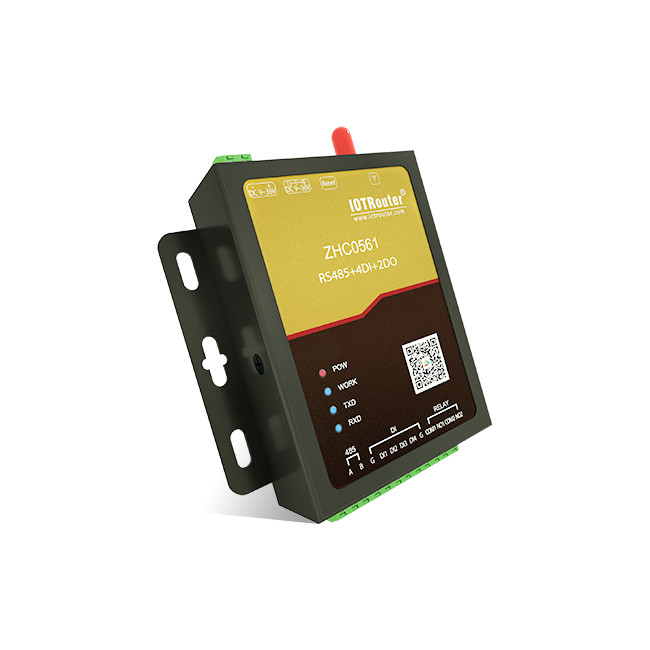

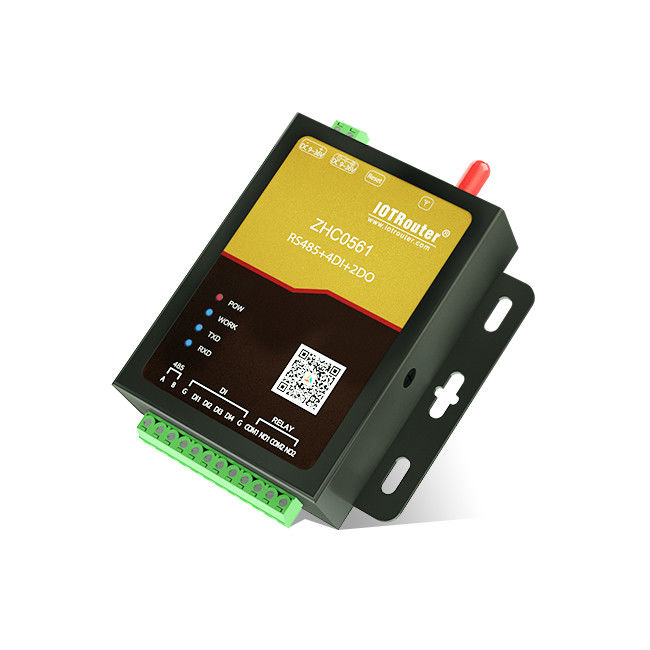

Iot Device Lora Modem Industrial Gateway Wireless Data Gathering With Antenna
Parameters of Lora Modem
ZHC0561 is a low-frequency half-duplex LoRa data transmission terminal that supports point-to-point communication protocol. It has 4 channels of DI detection, 2 channels of DO output, local logic and logic settings between devices, and supports AES communication encryption. The use of serial ports for sending and receiving reduces the threshold for wireless applications and can realize data transfer from serial ports to LoRa. LoRa has the advantages of concentrated power density and strong anti-interference ability. The communication distance of this product can reach 8000M (open field, antenna gain 3dBi, height greater than 2m, 0.268K air rate, default channel).
ZHC0561 has rich interfaces, convenient for customers to use
Provides 6 channels of I/O, which can realize 6 channels of digital input and output; Provides standard RS232 and RS485 interfaces, which can be directly connected to serial devices.
● Use high-performance industrial-grade chips
● Rich interfaces, convenient for customers to use
● Ultra-low power consumption, multi-level sleep
● Support multi-level adjustable power
● Built-in watchdog to ensure long-term stable operation of the system
● Support multiple frequency bands all over the world, 433/470/780/868/915MHz
ZHC0561 has 4 switch alarm inputs, which can be connected to infrared alarm switches, proximity switches, access switches and other equipment. ZHC0561 is divided into dry node and wet node input circuit.
Note: The device defaults to the dry node version. If you need a wet node, please consult customer service or leave a message.
LoRa RTU ZHC0561 Well overcome many shortcomings happened in similar products,with full consideration on tough environment.Validated by many vital projects with stability and reliance features. ZHC0561 can collect temp readings with preset interval and send out via another LoRa modem, Widely used in temperature monitoring applications with our gateway products.
|One to one, one to many Connection||√|
|RS485 Automatic Acquisition||√|
|Virtual Serial Port||√|
