| Place of Origin: | Sichuan, CHINA |
|---|---|
| Brand Name: | IOTROUTER |
| Certification: | CE FCC RoHs |
| Model Number: | ZHT8000 |
| Minimum Order Quantity: | 1PCS |
| Price: | USD22~28/PCS |
| Packaging Details: | 270*180*55mm CARTON PACKAGE |
| Delivery Time: | 1 WEEK |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50000PCS/MONTH |
| Material: | PLASTIC | Interface: | RS485/8DI |
|---|---|---|---|
| Product Name: | Data Acquisition Remote IO Module | Protocol: | MODBUS RTU |
| Function: | Relay Control | Application: | IOT Solutions |
| Working Voltage: | 12V | Module Type: | RS485 |
| OEM: | Support | Color: | Black |
| High Light: | ZHT8000 Remote IO Module,8DI Remote IO Module,RS485 modbus relay output module |
||

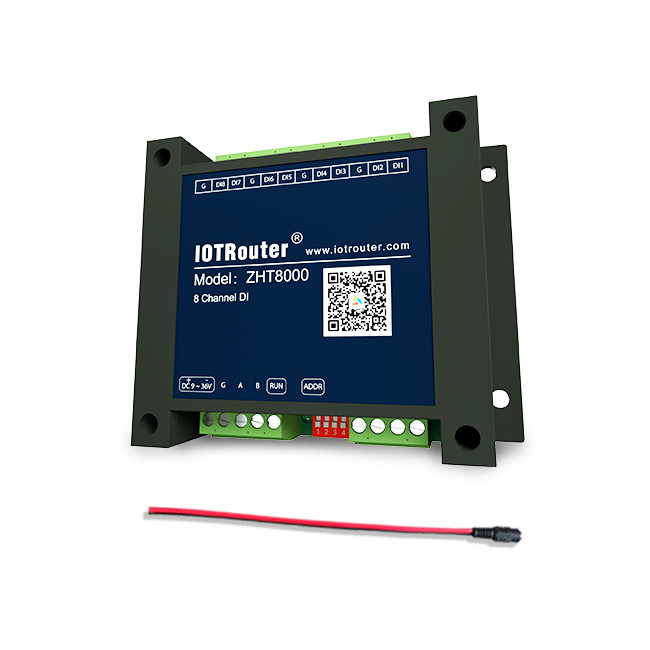

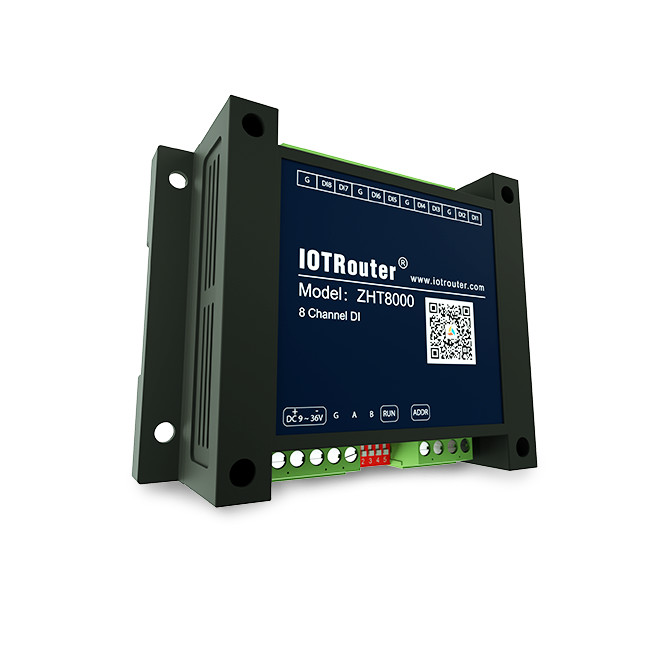

Data Acquisition Remote IO Module Relay Controller with IOT Platform Software
Parameters of Remote IO Module ZHT8000
ZHT8000 is a serial port control module that provides 8 DI and 1 RS485 interfaces, supports standard Modbus RTU protocol, supports dry and wet node detection, which can be widely used in various types of switch data acquisition Application scenario. It's simple and convenient for clients to use, also we provide comprehensive technical support.
DI Input Wiring Method
ZHT8000 has 8 switch alarm inputs, which can be connected to infrared alarm switches, proximity switches, access switches and other equipment.
ZHT8000 is divided into dry node and wet node input circuit.
Note: The device defaults to the dry node version. If you need a wet node, please consult customer service or leave a message.
Function of Remote IO Module ZHT8000
ZHT8000 has 8-channel switch alarm input, which can be connected with infrared alarm switch, proximity switch, access control switch and other equipment.ZHT8000 is divided into dry contact input circuit and wet contact input circuit.
Product model: ZHT8000, the product is mainly used to expand the RTU product interface and does not provide communication functions. Provide 8DI interface and 8 switch input.
Features: Dry and wet node monitoring, DC9-36V wide voltage, RS485 communication interface, 01~255 device addresses can be set.
Application: lighting control, unattended control of street lights, stage lighting control, lighting control.
| ZHT8000 | |
| RS485 Modbus | √ |
| 8 Channel Relay Input | √ |
| Standard Modbus Protocol | √ |
