Alarm Wireless MQTT MODBUS Modem

Basic Information
Place of Origin: Sichuan, CHINA
Brand Name: IOTROUTER
Certification: CE FCC RoHs
Model Number: ZHC492C
Minimum Order Quantity: 1PCS
Price: USD65~69/PCS
Packaging Details: 270*180*55mm CARTON PACKAGE
Delivery Time: 1 WEEK
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50000PCS/MONTH
Material: Metal Interface: RS485/4DI/4DO/4AI
Protocol: MODBUS TCP/RTU MQTT JSON Product Name: Alarm Wireless MODBUS MQTT Modem
Function: MQTT JSON Application: IOT Monitoring
Working Voltage: 12V Module Type: 4G LTE
Customized: Support Color: Black
OEM: Support
High Light:

Alarm Wireless MQTT MODBUS Modem

,

4DO MQTT MODBUS Modem

,

4DI lte modem module

Alarm Wireless MODBUS MQTT Modem Provide 1RS485 4DO 4DI 4AI Interface





Parameters of MQTT Modem



Serial Port
DO
Number of ports
RS485*1
Number of interfaces
1 Relay output
Standard
RS485: A, B
Standard
NO*1, COM*1
Baud rate
600~921600bps
Mechanical durability
10^7
Data bit
8, 9
Electrical durability
10^5
Stop bit
0.5, 1, 1.5, 2
Capacity
5A 250VAC 30VDC
Check Bit
NONE EVEN ODD
DI
Power Supply
Number of interfaces
2 Relay input
Voltage
9~36V
Standard
DI*2, COM*1
Current
60mA(aver) @9V
30mA(aver) @36V
Detection range (wet node)
5~50V->High0~2V->Low
EMC
AI
ESD
IEC61000-4-2, Level 4
Number of Interfaces
1 Analog input
Surge
IEC61000-4-2, Level 3
Standard
AI*1, G*1
Group pulse
IEC61000-4-2, Level 3
Scope of test
4~20mA

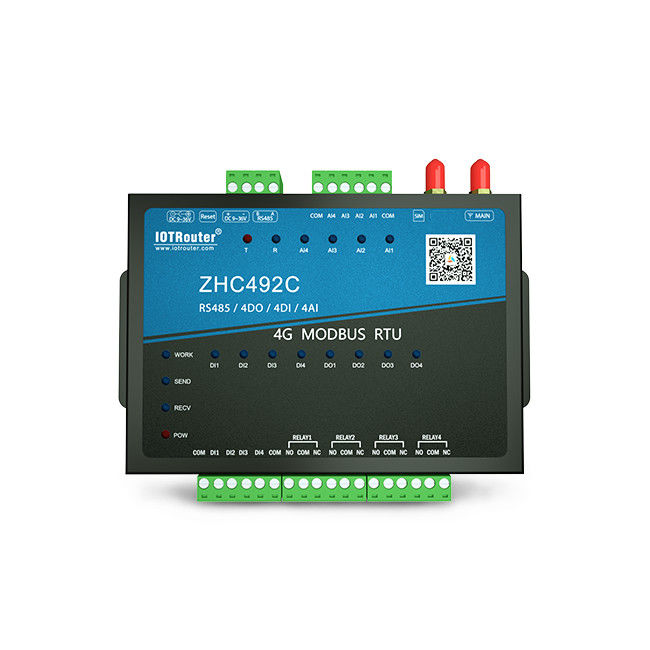

ZHC492C support 4-channel dry (wet) node detection, 4-channel relay (COM, NO, NC) Output, 4 channel analog quantity (current 4~20mA) detection, 1 channel RS485 transparent network IO products, compatible with Modbus RTU/TCP protocol. With remote control as the core function, it is highly easy to use, users can easily and quickly integrate into their own systems to realize remote and local control based on LTE, RS485.





Client can send Modbus commands to ZHC492C through the network and serial port to read and write DO status.
DO of ZHC492C support active reporting, restarting the holding relay status, output holding time, timing flip.



ZHC492C Function Description
Support serial port timing to send heartbeat
Send Modbus commands to ZHC492C through the network and serial port, you can read and write DO DI status, AI value
ZHC492C DI DO supports active reporting, restart to maintain relay status, output retention time, timing flip, etc.
(If there is no DI status change after power-on, it will be reported cyclically according to the "cycle time". If there is a DI status change, all status will be reported immediately and the cycle time will be reset.)



Application of MQTT Modem



1. Automatic Soil Moisture Monitoring
Establish a soil information system to master the overall quantity, quality and spatial distribution of soil resources.


2. Automatic Weather Monitoring
Improve the accuracy of weather forecasts to provide a scientific basis for governments at all levels to prevent and reduce disasters.



About Our Company



Chengdu Zongheng Intelligent Control Technology Co., Ltd. was established in 2015. It is a high-tech enterprise focusing on the research and development, production and sales of IoT communication control terminal products and related overall solutions. The company proposes an edge computing-based Criss-Cross IoT smart terminal platform solution for the growing Internet of Things connection, using the IoT smart communication terminal IOTRouter as the entry point, combining edge computing and big data cloud platforms to achieve IoT applications Data collection and transmission, intelligent control and other functions.



Alarm Wireless MQTT MODBUS Modem 0

Alarm Wireless MQTT MODBUS Modem 1

Alarm Wireless MQTT MODBUS Modem 2

Alarm Wireless MQTT MODBUS Modem 3

Alarm Wireless MQTT MODBUS Modem 4

Alarm Wireless MQTT MODBUS Modem 5

Alarm Wireless MQTT MODBUS Modem 6

Alarm Wireless MQTT MODBUS Modem 7







ZHC492C

RS485 Modbus

RS485 Automatic Acquisition

Virtual Serial Port

Connfiguration Software

Threshold Report

4 Channel Socket

8 Alarm Clocks

Customize the Follow Logic of Ports

JSON/Modbus RTU/TCP
