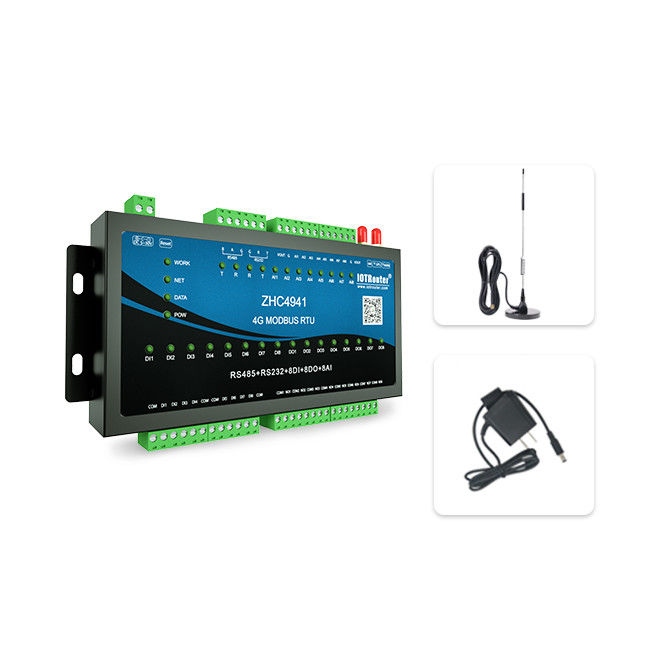

Industrial Lte Router IOT Cellular Modem Remote Monitoring Relay Modem

Basic Information
Place of Origin: Sichuan, CHINA
Brand Name: IOTROUTER
Certification: CE FCC RoHs
Model Number: ZHC4941
Minimum Order Quantity: 1PCS
Price: USD100-110/PCS
Packaging Details: 270*180*55mm CARTON PACKAGE
Delivery Time: 1 WEEK
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50000PCS/MONTH
Material: Galvanized Steel Sheet Interface: RS485/8DI/8DO/8AI
Protocol: MODBUS TCP/RTU Function: Transparent Transmission
Application: Remote Monitoring Working Voltage: 12V
Module Type: 4G LTE Customized: Support
Product Name: Industrial Lte Router IOT Cellular Modem Size: 190*95*30mm
Color: Black
High Light:

Lte Router IOT Cellular Modem

,

Industrial IOT Cellular Modem

,

Remote Monitoring Relay Modem

Industrial Lte Router IOT Cellular Modem With Relay Control For Remote Monitoring





Parameters of IOT Cellular Modem



Serial Port
DO
Number of ports
RS485*1
Number of interfaces
8 Relay output
Standard
RS485: A, B
Standard
DO*8, COM*2
Baud rate
600~921600bps
Mechanical durability
10^7
Data bit
8, 9
Electrical durability
10^5
Stop bit
0.5, 1, 1.5, 2
Capacity
5A 250VAC 30VDC
Check Bit
NONE EVEN ODD
DI
Power Supply
Number of interfaces
8 Relay input
Voltage
9~36V
Standard
DI*8, COM*2
Current
60mA(aver) @9V
30mA(aver) @36V
Detection range (wet node)
5~50V->High0~2V->Low
EMC
AI
ESD
IEC61000-4-2, Level 4
Number of Interfaces
8 Analog input
Surge
IEC61000-4-2, Level 3
Standard
AI*8, COM*2
Group pulse
IEC61000-4-2, Level 3
Scope of test
4~20mA



Working Mode of IOT Cellular Modem

1.HTTP Client
Support serial data transmission to designated server via HTTP.
2. TCP Client
The serial server actively initiates a TCP connection to the server. If it fails, it will continue to reconnect until it succeeds. If the connection is successful, the server and the serial device can perform two-way transparent data transmission.





Industrial Lte Router IOT Cellular Modem Remote Monitoring Relay Modem 0

Industrial Lte Router IOT Cellular Modem Remote Monitoring Relay Modem 1

Industrial Lte Router IOT Cellular Modem Remote Monitoring Relay Modem 2

Industrial Lte Router IOT Cellular Modem Remote Monitoring Relay Modem 3

Industrial Lte Router IOT Cellular Modem Remote Monitoring Relay Modem 4

Industrial Lte Router IOT Cellular Modem Remote Monitoring Relay Modem 5

Industrial Lte Router IOT Cellular Modem Remote Monitoring Relay Modem 6

Industrial Lte Router IOT Cellular Modem Remote Monitoring Relay Modem 7







ZHC4941

RS485 Modbus

RS485 Automatic Acquisition

Virtual Serial Port

Connfiguration Software

Threshold Report

Configuration Software Docking

Modbus RTU/TCP
