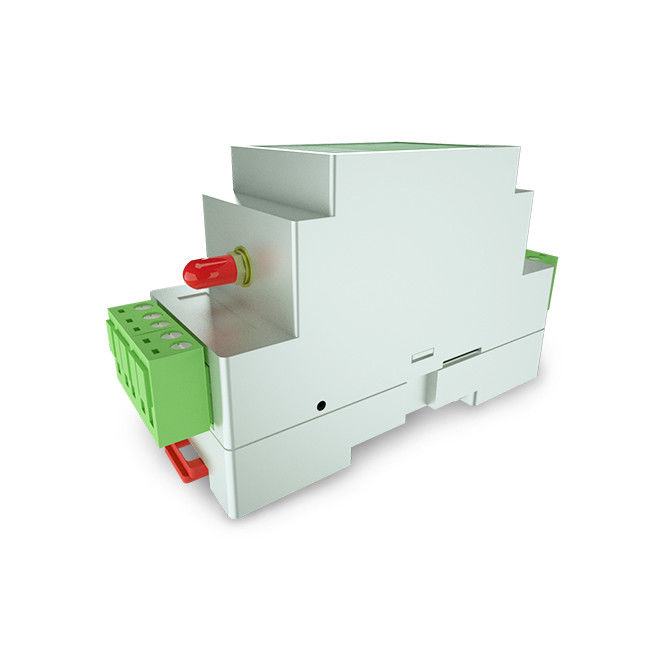

Serial To Lte DIN Rail Modem Modbus TCP UNIT For IOT Industry Farming

Basic Information
Place of Origin: SICHUANG, CHINA
Brand Name: IOTROUTER
Certification: CE/ROHS/FCC
Model Number: ZHC401C
Minimum Order Quantity: 1PCS
Price: USD35~39/PCS
Packaging Details: 270*180*55 Carton Package
Delivery Time: 50000 Piece/per Month
Payment Terms: L/C, , T/T, Western Union
Supply Ability: 50000PCS/MONTH
Working Current: 0.04A Transmission Rate: 921600Kbps
Product Name: Serial To Lte DIN Rail Modem Install: DIN Rail
Interface Type: 1RS485/232 Working Voltage: 12V
Module Type: 4G CAT-1 MQTT JSON: SUPPORT
Modbus TCP/IP: SUPPORT OEM: SUPPORT
Application: Industry Farming
High Light:

0.04A DIN Rail Gateway

,

921600Kbps DIN Rail Gateway

,

RS485 Modbus TCP UNIT

Serial To Lte DIN Rail Modem Modbus TCP UNIT For IOT Industry Farming





Description of DIN Rail Modem



ZHC401C is a network IO product that supports 1-way RS485 pass-through and is compatible with Modbus RTU/TCP protocol. With "remote control" as the core function, users can easily and quickly integrate into their own systems to achieve remote and local control based on LTE and RS485.



ZHC401C Serial Port
Number of ports
RS485*1
Standard
RS485: A, B
Baud rate
600~921600bps
Data bit
8, 9
Stop bit
0.5, 1, 1.5, 2
Check Bit
NONE EVEN ODD
Power Supply
Voltage
9~36V
Current
60mA(aver) @9V
30mA(aver) @36V
EMC
ESD
IEC61000-4-2, Level 4
Surge
IEC61000-4-2, Level 3
Group pulse
IEC61000-4-2, Level 3





Features of DIN Rail Modem


Main advantage:


Support JSON, Modbus RTU/TCP
1 way RS485 interface
TCP_Client/ MQTT_Client
Trigger action at set time
Cloud forwarding, cloud networking
Network registration package, heartbeat package
Hardware watchdog
Data trigger, regular report
Remote configuration, remote upgrade
The host computer supports configuration file import and export



Application of DIN Rail Modem



Smart Street Light
ZHC401C can realize the “communication” between street lights and urban public affairs managers several kilometers away, send Internet of Things data related to power usage, and adjust the lights remotely, such as dimming the lights on moonlit nights, or turning on the lights on heavy rain and foggy days. . The ability to adjust street lights according to climate can save energy and reduce energy costs.





Serial To Lte DIN Rail Modem Modbus TCP UNIT For IOT Industry Farming 0

Serial To Lte DIN Rail Modem Modbus TCP UNIT For IOT Industry Farming 1

Serial To Lte DIN Rail Modem Modbus TCP UNIT For IOT Industry Farming 2

Serial To Lte DIN Rail Modem Modbus TCP UNIT For IOT Industry Farming 3

Serial To Lte DIN Rail Modem Modbus TCP UNIT For IOT Industry Farming 4

Serial To Lte DIN Rail Modem Modbus TCP UNIT For IOT Industry Farming 5

Serial To Lte DIN Rail Modem Modbus TCP UNIT For IOT Industry Farming 6

Serial To Lte DIN Rail Modem Modbus TCP UNIT For IOT Industry Farming 7
