| Place of Origin: | Sichuan, CHINA |
|---|---|
| Brand Name: | IOTROUTER |
| Certification: | CE FCC RoHs |
| Model Number: | ZHT0062 |
| Minimum Order Quantity: | 1PCS |
| Price: | USD22~28/PCS |
| Packaging Details: | 270*180*55mm CARTON PACKAGE |
| Delivery Time: | 1 WEEK |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50000PCS/MONTH |
| Material: | PLASTIC | Product Name: | Rs485 Modbus Rtu Remote IO Module |
|---|---|---|---|
| Interface: | RS485/6AI/2AO | Protocol: | MODBUS RTU |
| Function: | 4-20mA Analog Data Converter | Application: | Data Acquisition |
| Working Voltage: | 12V | Module Type: | RS485 |
| OEM: | Support | ||
| High Light: | Modbus Rtu Remote IO Module,Rs485 Modbus Remote IO Module,Plastic 4 20mA Analog Data Converter |
||

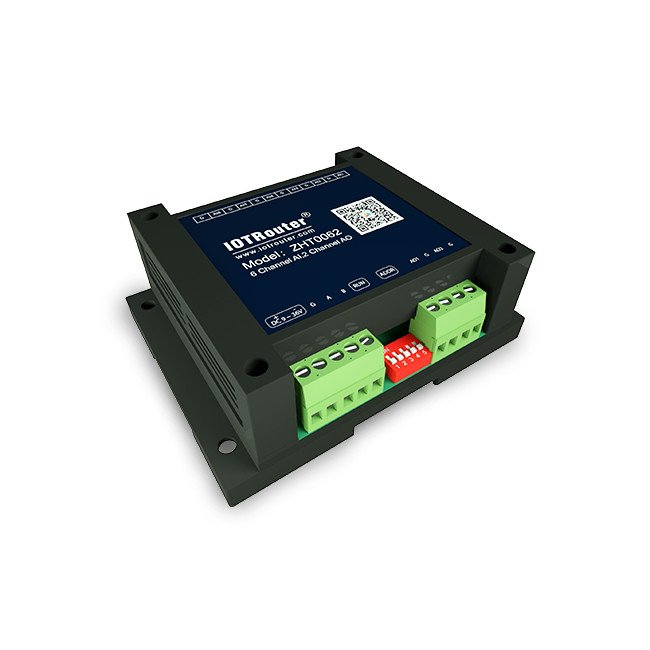

Rs485 Modbus Rtu Remote IO Module Plastic 4-20mA Analog Data Converter
Parameters of ZHT0062
ZHT0062 is a serial port control module, provide 6 channel AI ports, 2 channel AO ports and a RS485 interface, support the standard Modbus RTU protocol, support 4 ~ 20 ma analog input/output, support 12 sampling accuracy. we provide comprehensive technical support, and can be widely used in application scenarios such as warehousing and logistics, weather monitoring, smart energy, and aquaculture.
Product model: ZHT0062, the product is mainly used to expand the RTU product interface, and does not provide communication functions. Provide 6AI/2AO interface, provide 6 analog input and 2 analog output.
Features: Support 12-bit sampling accuracy, 01~255 device addresses can be set, DC9-36V wide voltage.
Application: Reservoir water level monitoring, carbon dioxide concentration monitoring, oxygen concentration monitoring, etc.
ZHT0062 has 6 channel analog inputs, which can collect analog signals of various instrument sensors.
ZHT0062 can collect analog signals of various instruments and sensors and convert them into digital signals, and transmit them to the control equipment through RS485 via Modbus RTU protocol.
| ZHT0062 | |
| RS485 Modbus | √ |
| 6 Channel Analog Intput | √ |
| 2 Channel Analog Output | √ |
| Standard Modbus Protocol | √ |
