| Place of Origin: | Sichuan, CHINA |
|---|---|
| Brand Name: | IOTROUTER |
| Certification: | CE FCC RoHs |
| Model Number: | ZHC1921 |
| Minimum Order Quantity: | 1PCS |
| Price: | USD45~48/PCS |
| Packaging Details: | 270*180*55mm CARTON PACKAGE |
| Delivery Time: | 1 WEEK |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50000PCS/MONTH |
| Material: | Galvanized Steel Sheet | Interface: | RS485/6DI/4DO/4AI |
|---|---|---|---|
| Protocol: | MODBUS TCP/RTU MQTT | Product Name: | Mqtt Gateway Ethernet IO Controller |
| Function: | Pulse Counting System | Application: | Industrial Automation |
| Working Voltage: | 12V | Module Type: | Ethernet |
| Customized: | Support | ||
| High Light: | Mqtt Gateway Ethernet IO Controller,Ethernet IO Controller 4 20mA,Acquisition IO 4 20mA Controller |
||

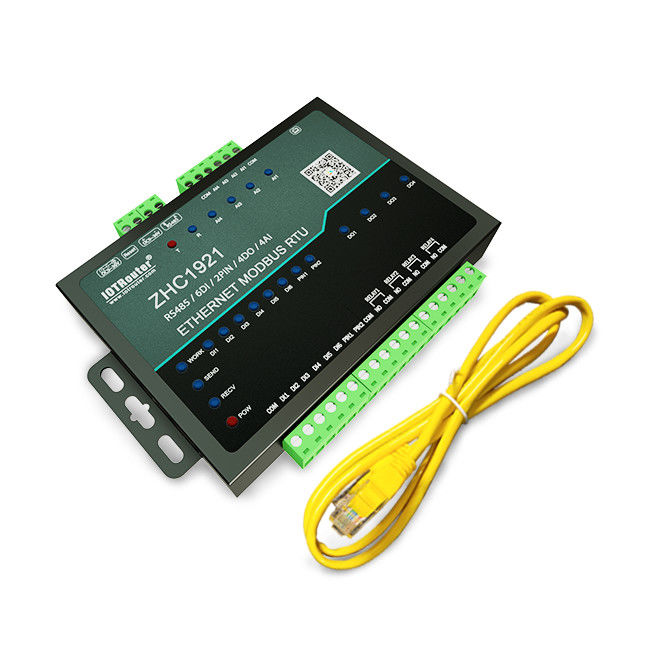

Mqtt Gateway Ethernet IO Controller 4-20mA Acquisition For Industrial Automation
Parameters of ZHC1921
Introduction of ZHC1921
ZHC1921 is a network IO product that supports 6-way dry (wet) node detection, 4-way relay (COM, NO) output, 4-way analog (current 4~20mA) detection, and 1-way serial port transparent transmission, compatible with Modbus RTU/TCP protocol. With "remote control" as the core of the function, it is highly easy to use, and users can easily and quickly integrate into their own systems to achieve remote based on Ethernet and RS485 with Local control.
Product model: ZHC1921, the network is Ethernet, providing RS485/6DI/2PIN/4DO/4AI interface
Functions:
1. Stable Ethernet Interface
2. Modbus TCP and MQTT
3. Local Logic Operation
4. RS485 Active Reporting
5. 16 Channel Modbus RTU
6. FREE ZH-Cloud Platform
7. Threshold Report
8. Obtain IP Automatically
The default IP address of ZHC1921 is 192.168.0.65. The configuration requires that the computer and ZHC1921 IP be set to the same IP address segment, otherwise the device and the computer cannot communicate.
ZHC1921 has built-in parameter configuration webpage. Users who use this device do not need to pay attention to the relevant holding registers of the device. They only need to understand the reported data of the device.
Set up ZHC1921 then use the Ethernet cable to connect the network port of the network device (router/switch/other) with ZHC1921. After the device is powered on, observe that the WORK indicator should flash for 3s, indicating that the network hardware environment where the device is located is normal and Ethernet data can be exchanged.
|
|
ZHC1921 |
|
RS485 Modbus |
√ |
|
RS485 Automatic Acquisition |
√ |
|
Virtual Serial Port |
√ |
|
Connfiguration Software |
√ |
|
Threshold Report |
√ |
|
4 Channel Socket |
√ |
|
Customize the Follow Logic of Ports |
√ |
|
MQTT/Modbus RTU/TCP |
√ |
