| Place of Origin: | Sichuan, CHINA |
|---|---|
| Brand Name: | IOTROUTER |
| Certification: | CE FCC RoHs |
| Model Number: | EG8000Mini |
| Minimum Order Quantity: | 1PCS |
| Price: | USD95~270/PCS |
| Packaging Details: | 270*180*6mm CARTON PACKAGE |
| Delivery Time: | 1 WEEK |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50000PCS/MONTH |
| Material: | Galvanized Steel Sheet | Interface: | RS485/RS232/2USB/4DI/4DO/4AI |
|---|---|---|---|
| Protocol: | MQTT/HTTP/TCP/UDP/WEBSOCKET | CPU: | ARM Cortex-A72 4*1.5G |
| Storage: | 1G + 8G | Operating Temperature: | -20~80℃ |
| Storage Temperature: | -20~85℃ | Environment Humidity: | 10-90%RH (non-condensing) |
| Cooling Method: | Heat Sink / Dissipation Silicone | Rated Voltage: | DC12V, DC9~28V(Working Range) |
| Product Name: | USB Raspberry Pi Gateway | ||
| High Light: | RS485 USB Raspberry Pi Gateway,Node RED Software Raspberry Pi Gateway,Rs232 Raspberry Pi Router |
||

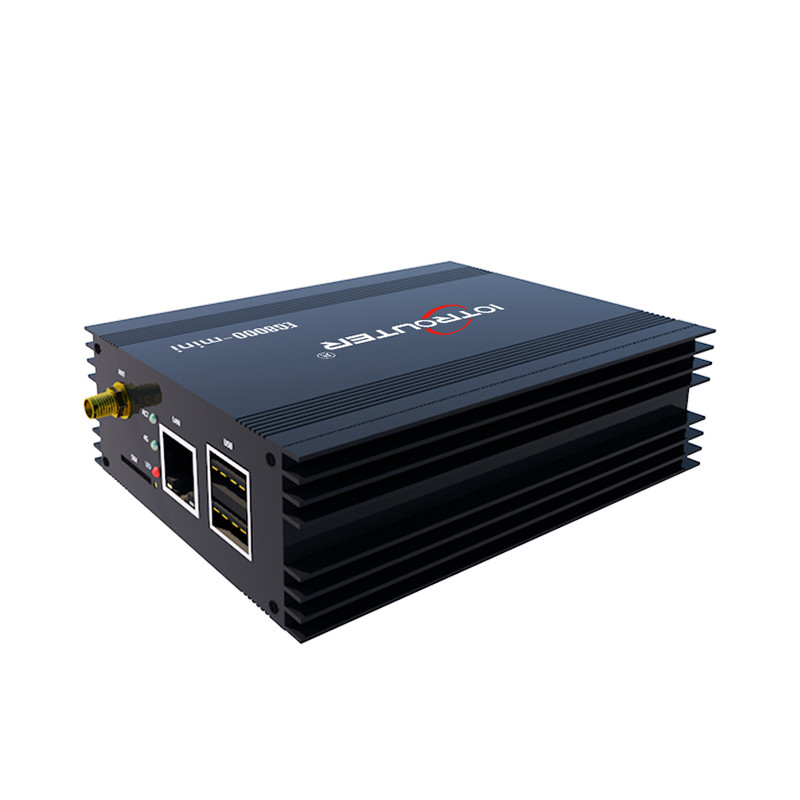

RS232 RS485 USB Raspberry Pi Gateway with Open Source Software Node-RED for User Defined
Parameters of Raspberry Pi Gateway
Raspberry Pi is a small computer that uses very little power (2-3 watts). It has all the horsepower necessary to serve as a cloud-enabled all-in-one Controller.
EG8000mini series products are edge computing gateways launched by IOTRouter Chengdu. With its rich hardware interfaces, drag-and-drop programming method, Zero Code design concept, convenient remote management and other characteristics, It can quickly, flexibly, accurately and efficiently respond to various IoT industry needs. Edge8000 abstracts complex hardware interfaces, different industrial network protocols, etc. into Nodesone by one. Users can use these Nodes flexibly to replace the traditional complex and inefficient coding process by dragging and connecting. Really let customers focus on business logic and quickly create their own gateway equipment. The mission of Edge8000 is to continuously develop new Nodes to serve industry customers to adapt to the fragmentation of IoT industry needs.
